SUS316F Precision Locating Pins , CNC Machining Turning SS Dowel Pins Fasteners

Product Categories
JESENTECH GROUP CORPORATION
Contact Now

SUS316F Precision Locating Pins , CNC Machining Turning SS Dowel Pins Fasteners

  • 1
  • 2
  • 3

Brand Name : JESENTECH

Model Number : Non-standard custom service

Certification : IATF16949:2016

Place of Origin : Shenzhen,CHINA

MOQ : 1-10 pieces

Price : $0.5-$9.9/pieces

Payment Terms : T/T, L/C, Western Union, MoneyGram,Paypal

Supply Ability : 850000 pieces/Month

Delivery Time : 3-10days

Packaging Details : General export packaging(PVC Bags+Shockproof cushion+Carton Box+Wood pallet)

Material : SUS303/304/316Stainless Steel,SKD11 etc.

Shaping Mode : Punching Mold

Hardness : 35~40HRC or 55HRC~

MOQ : NONE

Service : Customized

Tolerance : ±0.002mm

Product Name : Mold Locating Pins

Application : Welding Jigs & Fixtures

Lead Time : 3-10days

Size : Norminal Diameter:0.2-150mm Pins Length:4-200mm

Main processing equipment : Automatic Lathe, CNC Machine and BNC machine

Certificate : IATF16949:2016& ROHS

Contact Now

High precision of SUS316F Stainless Steel Mold Locating Pins by CNC Machining Turning for Mold making

Locating Pins-Alignment Concerns:

When working with and designing jigs or fixtures with locating pins, proper alignment is crucial to ensuring smooth operation and repeatable results. This episode will address a few of the most common solutions to alignment concerns for locating pins.
One of the biggest issues a new fixture designer encounters is binding of a part, where the way it is placed or removed from a pair of locating pins causes it to become stuck and out of alignment. This can lead to production line slow-downs, or in worse cases, “reject parts” due to improperly assembled or machined components.

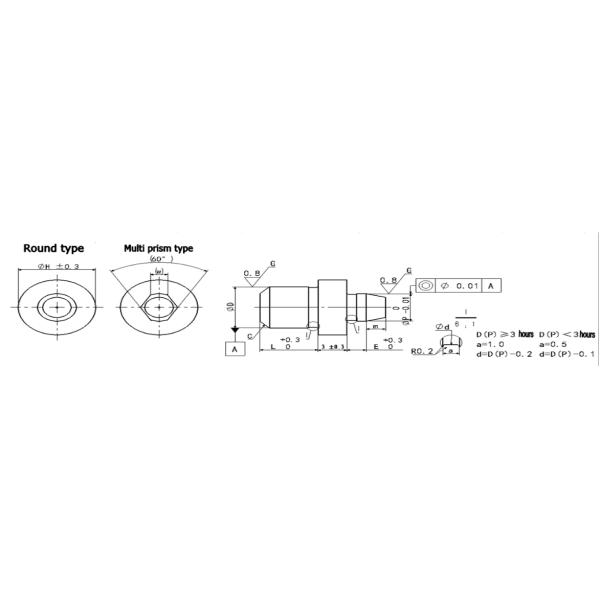

TypeMaterialSurface treatmentHardness of quenching
Round typePolyprismatic type
JHUKRJHVKRSKS3/Hardness 50~55HRC
JHUKRGJHVKRGSKS3Hard chromium platingHardness50~55HRC
Hardness of coating 750HV~
JHUSJHVSSUS303//
JHUCRJHVCRSUS440C/Hardness 53HRC~

SUS316F Precision Locating Pins , CNC Machining Turning SS Dowel Pins Fasteners

TypeD ToleranceDP
Designated unit 0.01mm		L
Designated unit 1mm		E
Designated unit 0.1mm		MH(W)C
Round type
JHUKR
JHUKRG
JHUS
JHUCR		Multi prism type
Suitable to D≥3
JHVKR
JHVKRG
JHVS
JHVCR		M
P
G
H		21.50~2.002~42.0~10.00.56-0.5
32.00~4.003~61610.5
42.00~5.004~8161.21
53.00~6.005~10281.51
64.00~7.006~122.0~12.0281.81
85.00~9.008~163.0~15.03112.21.5
107.00~11.0010~203.0~20.031332
127.00~12.0012~243153.22
138.00~13.0013~265.0~20.04163.52
1613.00~16.0016~3241943
2016.00~20.0020~405235.53
